¶ PO Dashboard
At a Glance
Route:/dashboard/po· For: Purchaser · Procurement Manager · Receiver · Status: Mock-data today; live wiring pending
¶ 1. What & Who
Purchaser's cockpit. Answers "which POs are in flight, which are slipping, and where am I exposed?"

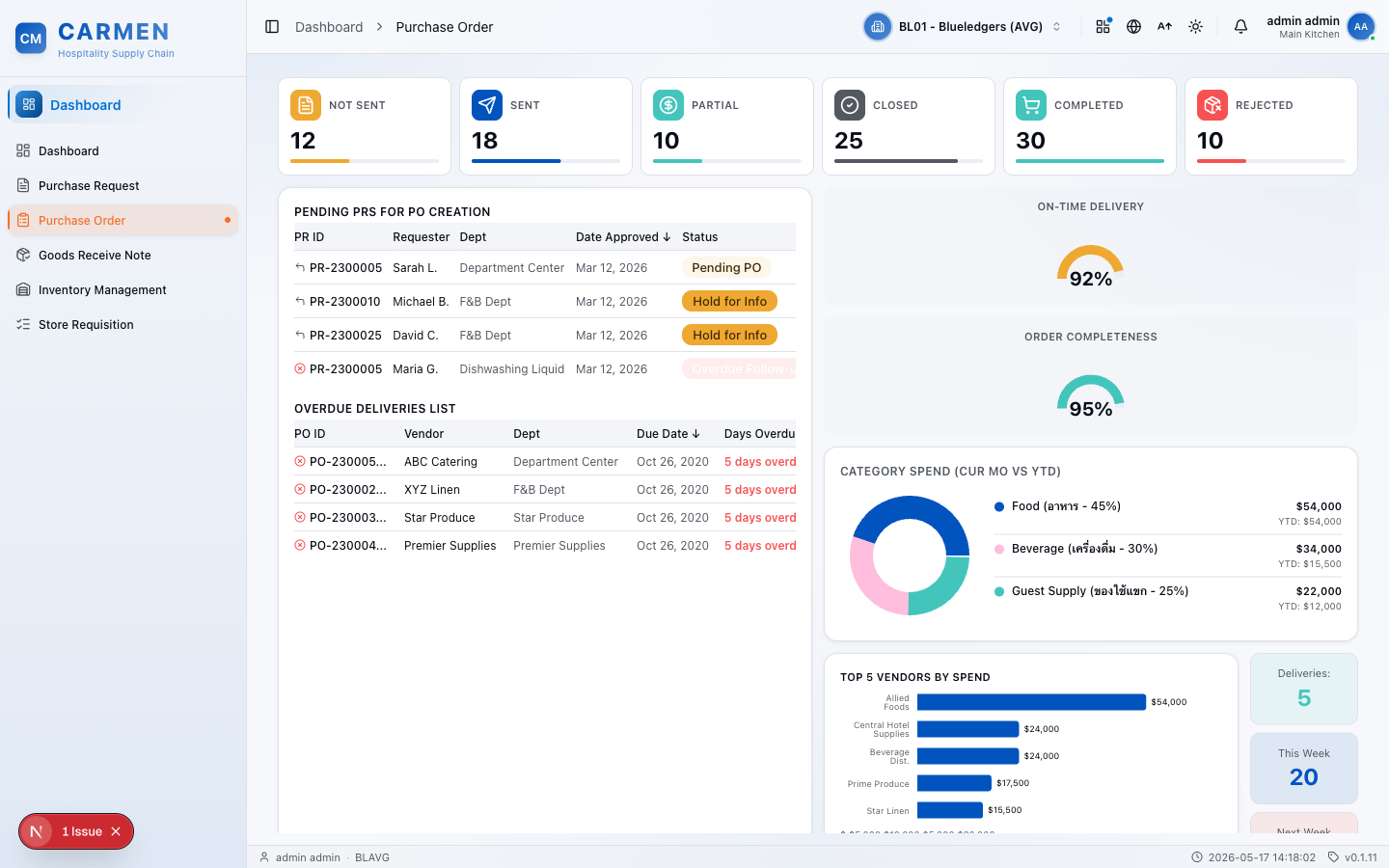

Layout: Six-tile pipeline strip (top) → action tables Pending PRs / Overdue Deliveries (left) + KPI gauges + spend visualisations (right) → full-width Over-Received POs table (bottom).
Two semicircular gauges call out the watched purchasing metrics: On-Time Delivery % and Order Completeness %.
Audience
- Purchaser — primary. Triages Pending PRs (to issue new POs), chases Overdue Deliveries, watches On-Time %.
- Procurement Manager — uses Top Vendors and Category Spend for supplier-mix reviews; watches Over-Received variance.
- Receiver — glances at Delivery Schedule (Today / This Week / Next Week) to prep dock staffing.
¶ 2. Tiles & Drill-downs
| Tile | What it shows | Drill-down (when live) |
|---|---|---|
| PO Pipeline | 6 stages: Not Sent / Sent / Partial / Closed / Completed / Rejected — count + progress bar | → purchase-order filtered by status |
| Pending PRs for PO Creation | PR ID, Requester, Dept, Date Approved, badge (Pending PO / Hold for Info / Overdue Follow-up) |
→ purchase-request |
| Overdue Deliveries | PO ID, Vendor, Dept, Due Date, "N days overdue" (destructive colour) | → purchase-order |
| On-Time Delivery | Semicircle gauge, percent (warning colour) | — |
| Order Completeness | Semicircle gauge, percent (success colour) | — |
| Category Spend (Cur Mo vs YTD) | Donut + legend with two amounts per row | — |
| Top 5 Vendors by Spend | Horizontal bar + amount labels | → vendor-pricelist |
| Delivery Schedule | 3 stat cards: Today / This Week / Next Week counts | → good-receive-note today's expected |
| Over-Received POs | PO #, Material, Code, Vendor, Ordered, Received, Variance +N, "Variance Flagged" badge |
→ good-receive-note |
Currency renders as $ in the mock — production should localise to BU base currency.
¶ 3. Common Questions
| Question | Answer |
|---|---|
| Why are the gauges static? | Mock-data today — On-Time / Completeness will resolve to query-dataset reports from reporting-audit. |
| Which PRs surface in "Pending PRs for PO Creation"? | purchase-request where workflow_current_stage = "approved" AND po_id IS NULL. SLA threshold drives the badge variant. |
| What flags a PO as "Overdue"? | expected_delivery_date < CURRENT_DATE AND not fully received against good-receive-note. |
| Where does Over-Received variance get reconciled? | Join PO line → committed GRN line where received_qty > ordered_qty; see costing for variance posting. |
Why is $ showing not ฿? |
Mock fixture quirk; production localises to BU base currency. |
¶ 4. Troubleshooting
| Symptom | Cause | Action |
|---|---|---|
| Gauges show identical % for every BU | Mock fixture seeds the same poKpi.onTimeDelivery / orderCompleteness everywhere |
Inspect mock/po.ts — values are static |
| Delivery Schedule "Today" empty on a known delivery day | Mock has no today-aware filter | Live wiring filters on expected_delivery_date against CURRENT_DATE |
| Over-Received row disappeared after page reload | Mock arrays are re-imported per render — stable today; not stable when live | Verify against good-receive-note commit log once wired |
| Top Vendors bar shows duplicate vendor names | Mock fixture quirk — vendor_id not de-duped |
Live query groups by vendor_id and joins vendor-pricelist |
¶ 5. Data Sources (Dev)
- Pipeline buckets — group-count on purchase-order by
status→ 6PoPipelineKeyvalues - Pending PRs for PO — purchase-request where
workflow_current_stage = "approved"ANDpo_id IS NULL; SLA-based badge (Pending PO< N days,Overdue Follow-up≥ N days) - Overdue Deliveries — purchase-order lines where
expected_delivery_date < CURRENT_DATEAND not fully received against good-receive-note - On-Time Delivery / Order Completeness — period KPIs by reporting-audit over committed GRNs against PO expected dates/quantities
- Category Spend — sum PO-line amount grouped by product/category, current-month vs YTD
- Top Vendors — sum PO total grouped by
vendor_id, top 5 - Delivery Schedule — count PO lines where
expected_delivery_datefalls in today / this week / next week - Over-Received POs — join purchase-order line to committed good-receive-note line where
received_qty > ordered_qty
¶ 6. Refresh Cadence
Static mock today. Live wiring inherits CACHE_DYNAMIC (1-min stale) from proxy hooks. Overdue Deliveries and Over-Received are time-sensitive — testers should verify recompute on tab focus once wired.
¶ 7. Related Modules
- purchase-order — transactional system-of-record
- purchase-request — upstream feed for Pending PRs for PO Creation
- good-receive-note — downstream receipts driving On-Time, Completeness, Over-Received
- vendor-pricelist — vendor master behind the Top Vendors bar
- reporting-audit — query datasets for the KPI gauges
- costing — variance handling for over-received quantities
¶ 8. Reference Sources
- Page shell:
../carmen-inventory-frontend/app/(root)/dashboard/po/page.tsx - Composition:
../carmen-inventory-frontend/app/(root)/dashboard/_components/dashboard-po.tsx - Mock data:
../carmen-inventory-frontend/app/(root)/dashboard/mock/po.ts - i18n:
messages/en.json→dashboard.po.title= "Purchase Order Dashboard"
