¶ PR Dashboard
At a Glance
Route:/dashboard/pr· For: Requester · HOD / Approver · Procurement · Status: Mock-data today; live hooks defined but not mounted · Scope: Personal — the signed-in user's PRs
¶ 1. What & Who

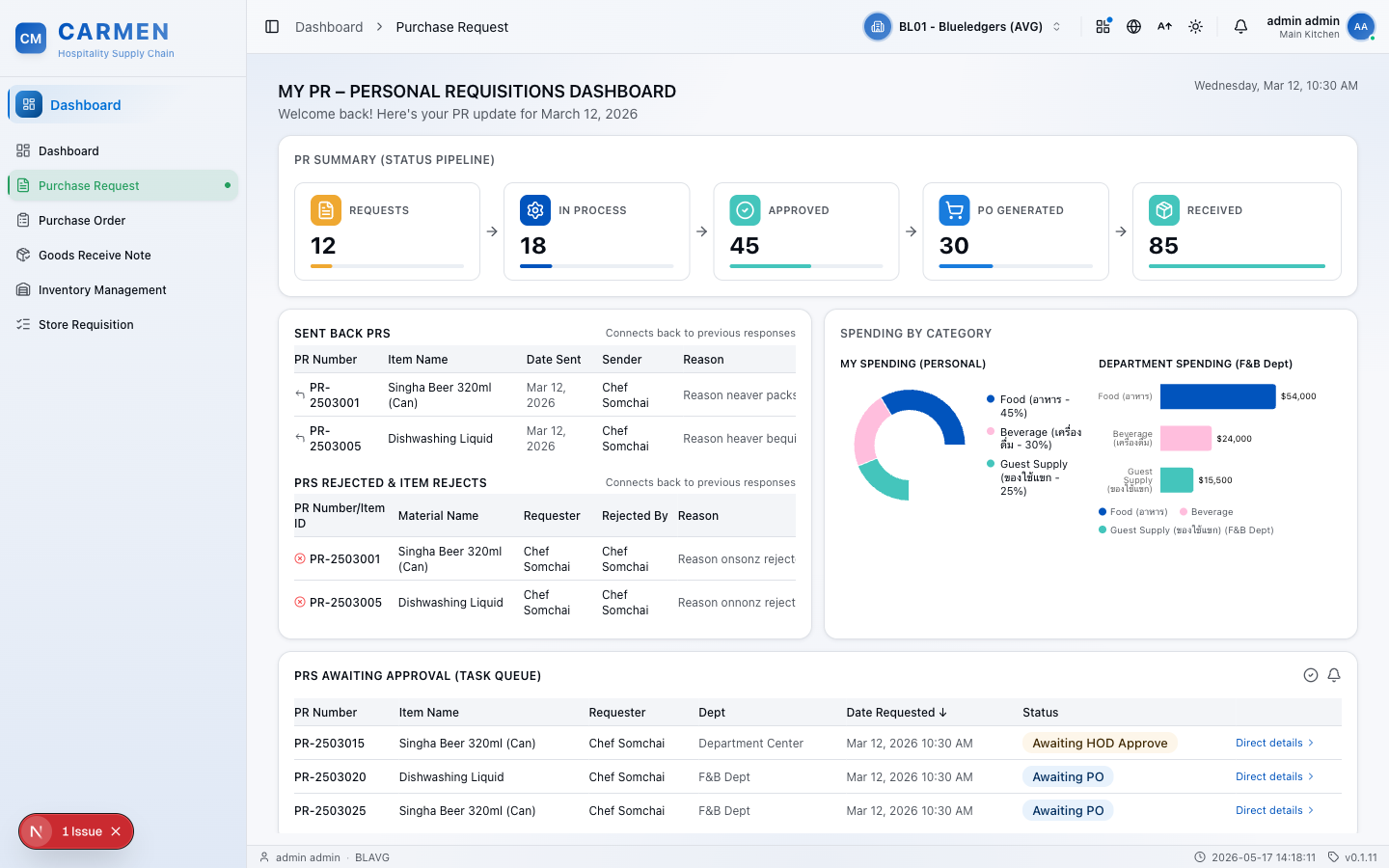

Personal-requisitions cockpit. Header reads "MY PR – PERSONAL REQUISITIONS DASHBOARD". Answers two questions: "where are my PRs stuck?" and "what's waiting on me right now?"
Layout: Five-stage pipeline strip (top) → two tables Sent Back / Rejected (left) + spending donut + dept bar (right) → full-width Awaiting Approval queue (bottom).
Audience
- Requester — primary. Watches Sent Back / Rejected to fix and resubmit; tracks the pipeline strip.
- HOD / Approver — uses the Awaiting Approval task queue at the bottom;
Awaiting HOD Approvebadge targets HOD action. - Procurement — checks
Awaiting POrows ready to convert into a purchase-order.
¶ 2. Tiles & Drill-downs
| Tile | What it shows | Drill-down (when live) |
|---|---|---|
| PR Summary (Pipeline) | 5 stages: Requests / In Process / Approved / PO Generated / Received — count + progress bar | → purchase-request filtered by stage |
| Sent Back PRs | PR Number, Item, Date Sent, Sender, Reason | → purchase-request detail |
| PRs Rejected & Item Rejects | PR Number/Item ID, Material, Requester, Rejected By, Reason | → purchase-request detail |
| My Spending (Personal) | Donut by 3 categories with external-label percent | — |
| Department Spending (F&B Dept) | Horizontal bar: Food / Beverage / Guest Supply | — |
| PRs Awaiting Approval | PR, Item, Requester, Dept, Date, Status badge (Awaiting HOD Approve / Awaiting PO), "Direct details" action |
→ purchase-request detail |
Currency in spending charts renders as $ in the mock — production should follow BU base currency from master-data/exchange-rate.
¶ 3. Common Questions
| Question | Answer |
|---|---|
| Why don't my pipeline counts update after I submit a PR? | Mock-data today — counts come from mock/pr.ts, not from purchase-request. Live wiring will refresh on focus. |
| Where do the five stages come from? | Collapsed projection of workflow_current_stage (see system-config/workflow) into Requests / In Process / Approved / PO Generated / Received. |
| Is "My Spending" my PRs only, or my department's? | "My" is requestor_id = current_user; "Department" is department_id scoped — same query, different scope on PR-line amounts grouped by product/category. |
| When will Awaiting Approval go live? | Hook exists — useApprovalPending({ doc_type: "pr" }) in hooks/use-approval.ts — but is not yet mounted on this page. |
Why is currency showing $ not ฿? |
Mock fixture quirk; production will localise to BU base currency. |
¶ 4. Troubleshooting
| Symptom | Cause | Action |
|---|---|---|
| Tile not clickable / drill goes nowhere | Drill-down routes not wired in current build | (Inferred — to be verified against live UI) |
| Numbers differ from purchase-request list | Page reads independent mock fixture, not live data | Resolves when useApprovalPending is mounted |
| Sent Back table empty for known sent-back PR | Mock fixture has finite seed rows | Inspect mock/pr.ts → sentBackPrs |
Awaiting HOD Approve badge not refreshing after approve action |
Mock is static; no event listener | Live wiring uses TanStack Query refetch-on-focus |
¶ 5. Data Sources (Dev)
- Pipeline counts — group-count on purchase-request by
workflow_current_stage - Sent Back / Rejected —
workflow_action_historyfiltered toaction ∈ {send_back, reject}joined to purchase-request - My / Department Spending — sum PR-line amount grouped by product/category, scoped by
requestor_id/department_id - Awaiting Approval —
useApprovalPending({ doc_type: "pr" })(hooks/use-approval.ts) once wired
¶ 6. Refresh Cadence
Static mock today. Once wired through useApprovalPending, TanStack Query default applies — refetch on focus, no polling. Sidebar pending-count badges (separate from this page) use CACHE_DYNAMIC (1-min stale).
¶ 7. Related Modules
- purchase-request — transactional system-of-record
- purchase-request/my-approval — drill destination for the task queue
- purchase-order — downstream conversion target for
PO Generated - good-receive-note — downstream
Receivedstage - system-config/workflow — stage definitions that drive pipeline buckets
¶ 8. Reference Sources
- Page shell:
../carmen-inventory-frontend/app/(root)/dashboard/pr/page.tsx - Composition:
../carmen-inventory-frontend/app/(root)/dashboard/_components/dashboard-pr.tsx - Mock data:
../carmen-inventory-frontend/app/(root)/dashboard/mock/pr.ts - i18n:
messages/en.json→dashboard.pr.title= "Purchase Request Dashboard" - Live hook (not mounted):
../carmen-inventory-frontend/hooks/use-approval.ts→useApprovalPending
