¶ Department
At a Glance
Owner: Product Admin (list) / Sysadmin (user mapping) · Tables:tb_department,tb_department_user· Used by: PR, SR, approval workflows, RBAC, reports · Cost-centre + requesting-unit dimension; resolves Head-of-Department reviewer.
¶ 1. What & Who
Departments model the cost-centre / requesting-unit dimension of the property — Kitchen, F&B, Engineering, Housekeeping, Front Office, etc. Every internal request for goods (PR, SR) carries a department FK, and approval workflows often route by department. Department is also the join axis between users and the part of the business they belong to via tb_department_user, which marks one user as Head of Department (is_hod).
Maintained by Product Admin (department list, active flag) and Sysadmin (user-to-department assignment, HOD flag). Read by developers on PR/SR routing, RBAC, and reports.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|

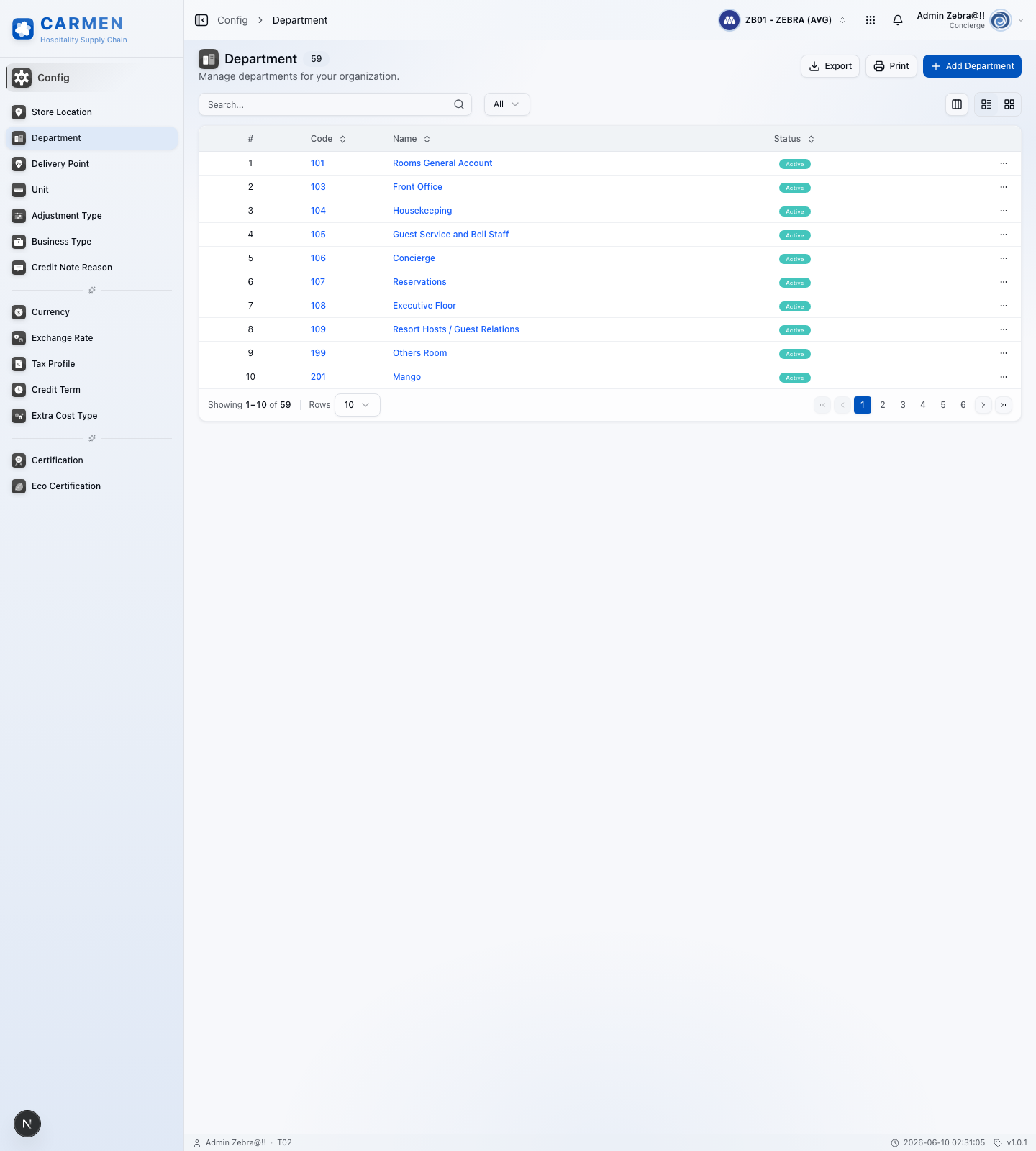

| Add a department | Configuration → Master Data → Department → New | Required: code, name |
| Deactivate | Toggle is_active |
Hidden from PR/SR pickers; historical references preserved |

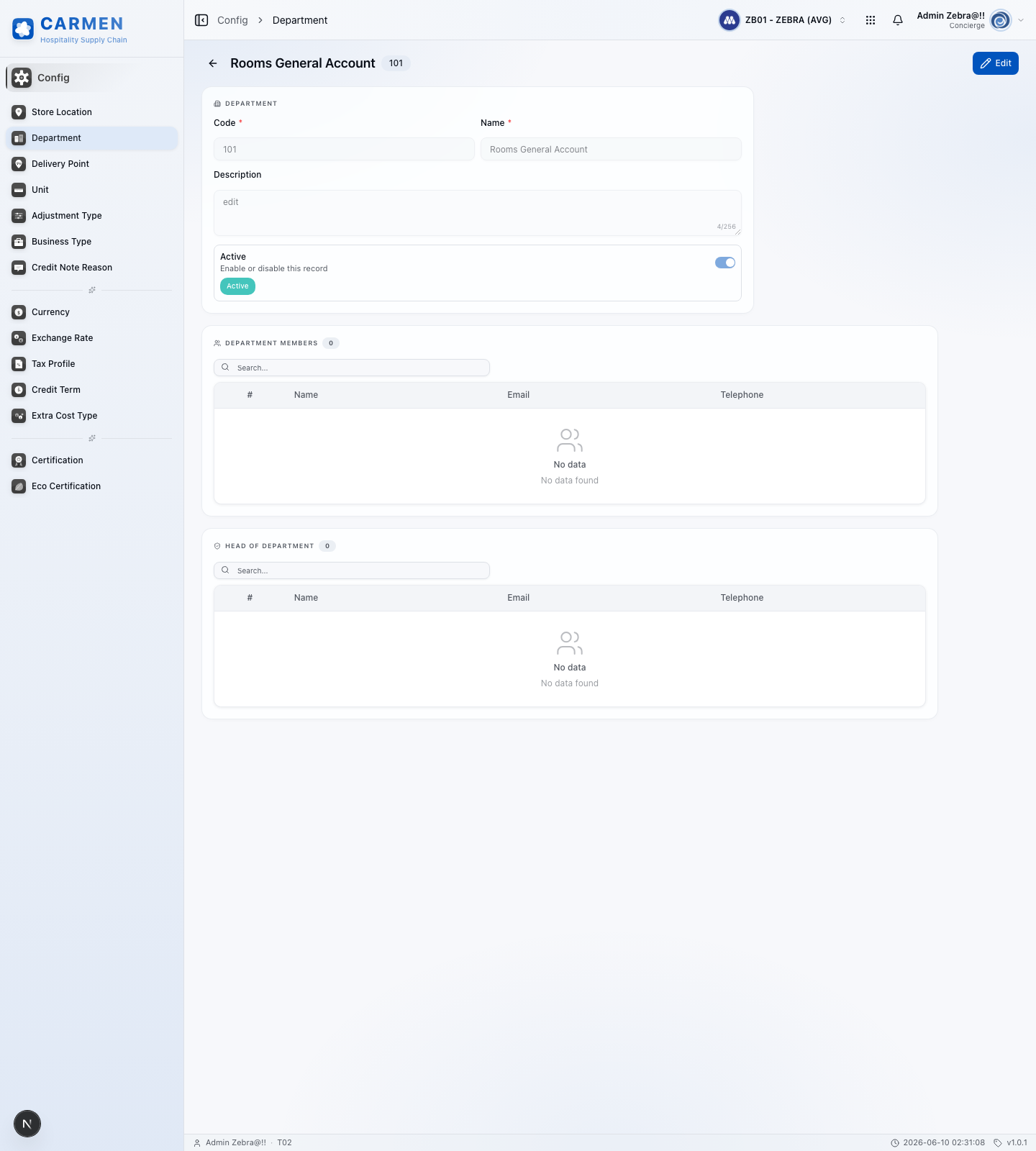

| Assign user to department | User-admin screen → Department tab | Writes to tb_department_user |
| Set HOD | Same screen → toggle is_hod |
At most one HOD per department (app invariant) |
| Reassign HOD | Toggle off old, on new | Past approvals retain the original signer |
¶ 3. Validation & Errors
| Symptom / Message | Cause | Action |
|---|---|---|
| "Code already in use" | Duplicate code on a non-deleted row |
Pick a different code |
| "Department-name typo conflict" | (code, name) collides with an existing row |
Resolve naming or reactivate the existing row |
| "Code / name required" | Form submitted blank | Add both |
| "Cannot delete — referenced by open PR/SR" | FK references exist | Soft-delete only after closing open docs and clearing user mappings |
| Workflow can't resolve HOD | No is_hod = true in the department |
Set one user as HOD |
¶ 4. Edge Cases
- Single-HOD invariant is app-enforced, not DB. A maintenance check should fail loudly if multiple
is_hod = truerows appear. - HOD change doesn't retro-fit historical approvals — past steps keep the user who actually signed.
- Soft-delete requires no active user mappings; otherwise HOD resolution breaks for those users.
- Triple unique —
code,name, and(code, name)all have uniqueness guards to prevent typo duplicates.
¶ 5. Data Model (Dev)
Source: tenant schema (packages/prisma-shared-schema-tenant/prisma/schema.prisma).
¶ 5.1 tb_department
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
code |
String @db.VarChar |
No | Short department code (e.g. KIT, FB). |
name |
String @db.VarChar |
No | Department name. |
description |
String? @db.VarChar |
Yes | Free text. |
is_active |
Boolean? |
Yes | Active flag, defaults true. |
note, info, dimension |
— | Yes | Standard metadata. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([name, deleted_at]) map department_name_u; @@unique([code, deleted_at]) map department_code_u; @@unique([code, name, deleted_at]) map department_code_name_u. Indexes on name and code.
¶ 5.2 tb_department_user
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
user_id |
String @db.Uuid |
No | FK to platform tb_user. |
department_id |
String @db.Uuid |
No | FK to tb_department. |
is_hod |
Boolean? |
Yes | True for Head of Department (default false). |
note, info, dimension, doc_version |
— | Mixed | Standard metadata. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([department_id, user_id, deleted_at]) map department_user_u. Indexes on (department_id, user_id), user_id, department_id. FK to tb_department onDelete: NoAction.
¶ 6. Business Rules
- Uniqueness.
codeunique among non-deleted rows;(code, name)index guards typo duplicates. - Deletion guards. Open PR/SR references block hard-delete; soft-delete only after closure and clearing user mappings.
- Validation.
codeandnamerequired. At most oneis_hod = trueper department (app invariant). - Lifecycle.
is_active = falsehides from new pickers; preserves historical references. - HOD changes never retro-fit historical approvals.
¶ 7. Cross-References
- purchase-request — PR header references requesting department; routing uses HOD from
tb_department_user. - store-requisition —
from/tolocation paired with department on every requisition. - access-control — department membership drives default RBAC scope.
- reporting-audit — many reports group by department.
¶ 8. References
- Prisma:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_department(lines ~682-708),tb_department_user(lines ~4401-4425). - Frontend:
../carmen-turborepo-frontend/apps/web/app/(app)/configuration/department/.
