¶ Unit
At a Glance
Owner: Product Admin · Tables:tb_unit,tb_unit_conversion· Used by: product, recipe, PR / PO / GRN / SR / inventory / costing · Inventory + order units and the multipliers between them.
¶ 1. What & Who
Units catalogue every unit of measure used for quantities, prices, and balances — both inventory/ingredient units (kg, L, each) and order/purchase units (case-of-12, sack-25kg). Every priced or counted line in Carmen carries one or more unit references, so this is the smallest piece of master data that touches every transactional module.
The companion table tb_unit_conversion stores multipliers between two units, optionally scoped per product. Conversions power purchase-to-inventory translation in GRN, recipe yield calc, and pricelist comparison across vendors quoting different pack sizes. Without correct conversions, every downstream costing and balance number is wrong. Maintained by Product Admin; read by every transactional path.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|

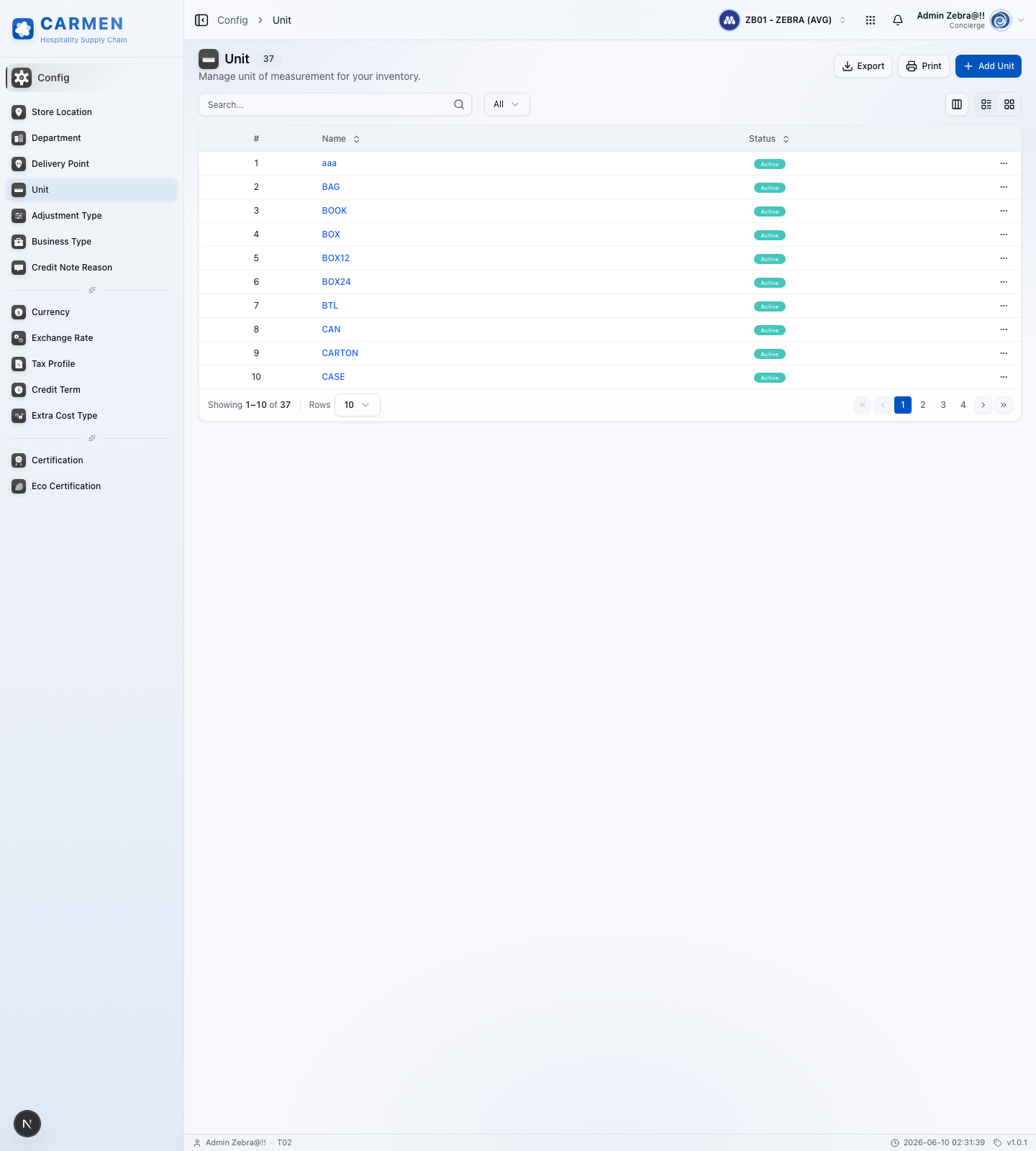

| Add a unit | Configuration → Master Data → Unit → New | Required: name; decimal_place defaults 2 |
| Deactivate | Toggle is_active |
Hidden from new transactions; historical lines unchanged |
| Add a global conversion | Conversion matrix | product_id = NULL; pick unit_type, from-unit/qty, to-unit/qty |
| Add a per-product conversion | Product detail → Conversions | Overrides global for that product |
| Mark default conversion | Toggle is_default |
Primary when multiple conversions exist for the same pair |
| Identity conversion | Same from/to with equal qty | Permitted; otherwise from ≠ to required |
¶ 3. Validation & Errors
| Symptom / Message | Cause | Action |
|---|---|---|
| "Duplicate unit name" | Same name already active (case-insensitive) |
Reactivate the existing row or pick a different name |
| "Conversion qty must be > 0" | Either from_unit_qty or to_unit_qty is zero/negative |
Enter positive values |
| "Same-unit conversion needs equal qty" | from_unit_id == to_unit_id but qty differs |
Use the identity (1 = 1) or pick a different pair |
| "Conversion already exists for this product/pair" | Unique constraint violated | Edit the existing row |
| "Cannot delete — unit in use" | Active products, recipes, or postings reference the unit | Inactivate instead |
¶ 4. Edge Cases
- Uniqueness on
nameis app-enforced (no DB unique constraint) — case-insensitive duplicates can slip through if app validation is bypassed. decimal_placeis rendering only — storage isDecimal(20, 5).- Per-product conversion overrides global — resolution picks the product-scoped row first.
- Identity conversions are allowed but only with equal
qtyon both sides. - Inactive units stay readable on historical documents; cannot be selected in new transactions.
enum_unit_typediscriminatesorder_unitvs.ingredient_unit— different resolution paths in GRN vs. recipe.
¶ 5. Data Model (Dev)
Source: tenant schema (packages/prisma-shared-schema-tenant/prisma/schema.prisma).
¶ 5.1 tb_unit
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key (gen_random_uuid()). |
name |
String @db.VarChar |
No | Display name, e.g. kg, each, case. |
description |
String? @db.VarChar |
Yes | Free-text description. |
is_active |
Boolean? |
Yes | Active flag, defaults true. |
decimal_place |
Int |
No | Render precision (default 2). |
note |
String? @db.VarChar |
Yes | Internal note. |
info |
Json? |
Yes | Metadata ({} default). |
dimension |
Json? |
Yes | Dimension tag array. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: primary key on id. Soft-delete via deleted_at. No explicit unique on name — app-layer enforcement against active rows.
¶ 5.2 tb_unit_conversion
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
product_id |
String? @db.Uuid |
Yes | Optional product scope; NULL = global. |
unit_type |
enum_unit_type |
No | order_unit or ingredient_unit. |
from_unit_id / from_unit_name / from_unit_qty |
— | Mixed | Source side. qty default 0, Decimal(20,5). |
to_unit_id / to_unit_name / to_unit_qty |
— | Mixed | Target side. |
decimal_place |
Int |
No | Render precision for converted qty. |
is_default |
Boolean? |
Yes | Primary when multiple conversions exist for the same pair. |
description |
Json? |
Yes | Localised description. |
is_active, note, info, dimension |
— | Mixed | Standard activation/metadata. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([product_id, unit_type, from_unit_id, to_unit_id, deleted_at]) named unitconversion_product_unit_type_from_unit_to_unit_deletedat_u. Index on the same prefix. Both FKs to tb_unit onDelete: NoAction.
enum_unit_type values: order_unit, ingredient_unit.
¶ 6. Business Rules
- Uniqueness. App enforces no duplicate active unit
name(case-insensitive). Conversions unique per(product_id, unit_type, from_unit_id, to_unit_id)among non-deleted rows. - Deletion guards. Active product/recipe/posting references block hard-delete — inactivate.
- Validation. Conversion
from_unit_qtyandto_unit_qtyboth> 0. Same-unit pairs only with equal qty. - Lifecycle. Inactive units visible on historical documents; locked from new transactions.
- Decimal precision.
decimal_placeis rendering only; storageDecimal(20,5).
¶ 7. Cross-References
- product — every product has order/ingredient/inventory unit refs and a per-product conversion set.
- recipe — recipe lines use ingredient units; yields convert to inventory unit.
- purchase-request — requested / approved / FOC qtys carry a unit FK.
- purchase-order — order_unit and base_unit per detail line.
- good-receive-note — ordered / received / FOC unit columns; conversion applied to post inventory qty.
- store-requisition — requisition lines carry unit references.
- inventory — balances kept in inventory unit; conversions translate from receipt.
- inventory-adjustment — adjustment qtys in inventory unit.
- costing — costing engine consumes inventory-unit balances.
¶ 8. References
- Prisma:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_unit(lines ~3132-3208),tb_unit_conversion(lines ~3210-3246),enum_unit_type(lines ~254-257). - Frontend:
../carmen-turborepo-frontend/apps/web/app/(app)/configuration/unit/.
