¶ Product Category
At a Glance
Owner: Product Admin · Tables:tb_product_category→tb_product_sub_category→tb_product_item_group(3 FIXED levels, NOT self-referential) · Trigger: taxonomy maintenance · Used by: PR / PO / GRN / recipe / reports / permission scoping · 1-liner: classification layer driving navigation, inherited defaults, and tolerances.
¶ 1. What & Who
Product Category is the classification layer over the product master. Every product carries a (category, sub_category, item_group) triple that drives:

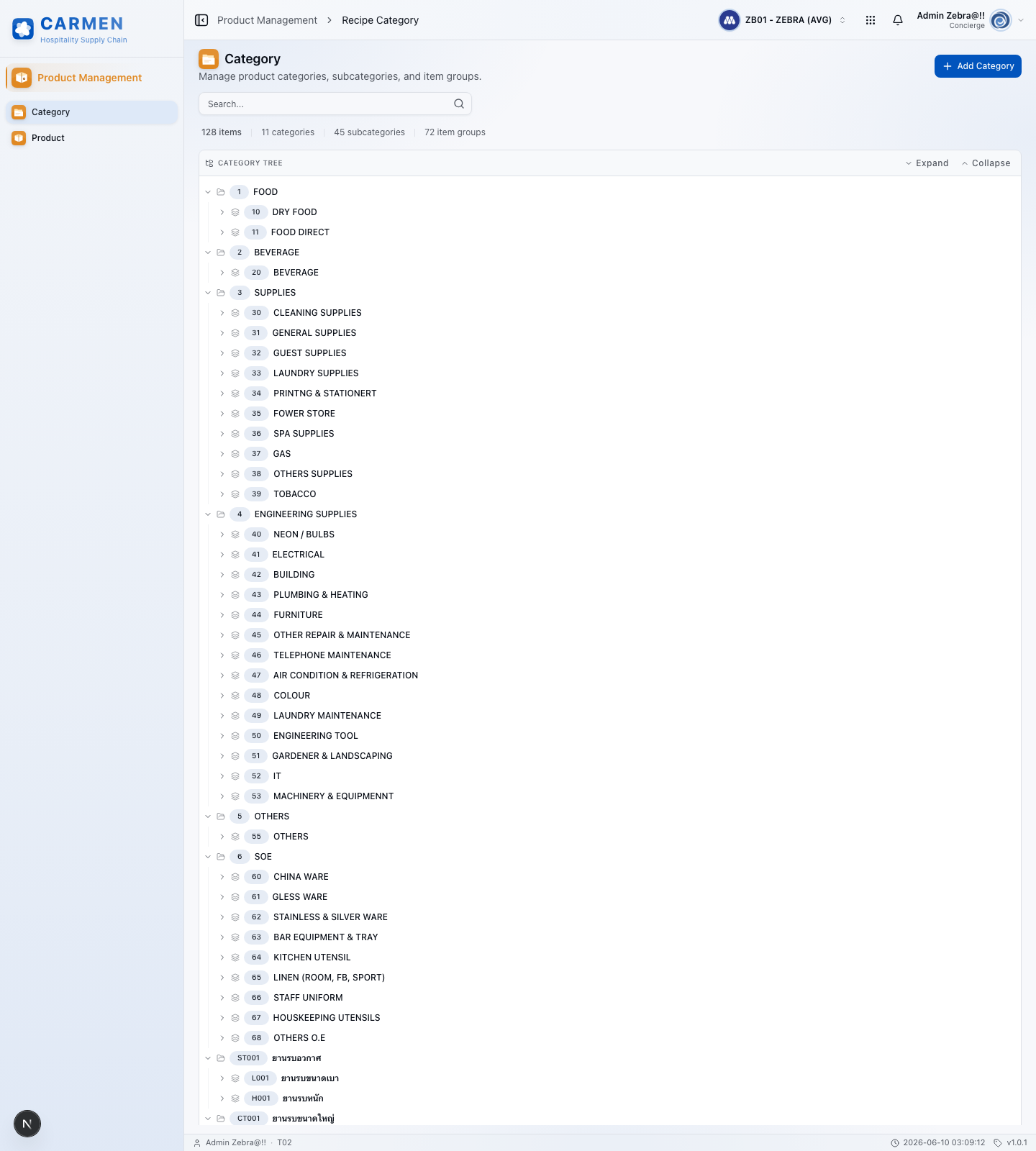

- Catalogue navigation — users drill
Food > Beverage > Coffee Beansrather than scrolling - Attribute inheritance — tax profile, deviation tolerances,
is_used_in_recipe,is_sold_directlydefault down the tree - Cost / loss reporting roll-ups — food cost, wastage, variance group by category at every level
- Permission scoping — Purchaser and Store Keeper can be restricted to category branches
Maintained by the Product Admin persona. Referenced by category_id on every tb_product row.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|
| Add a top-level category | Product Management → Category → New | code must be unique among non-deleted rows |
| Add a sub-category | Open category → Add sub-category | FK product_category_id set to parent |
| Add an item group (leaf) | Open sub-category → Add item group | FK product_subcategory_id set to parent |
| Set price deviation tolerance | Edit any level → price_deviation_limit |
% cap on PO unit price vs master/last-receiving; finest level wins |
| Set qty deviation tolerance | Edit any level → qty_deviation_limit |
% cap on GRN qty vs PO qty; finest level wins |
| Override tax profile | Edit any level → tax_profile_id / tax_rate |
Affects NEW products only — existing products keep snapshotted setup |
Toggle is_used_in_recipe / is_sold_directly |
Flag fields on any level | Used by recipe builder and POS pickers |
| Inactivate a leaf | Edit item group → is_active = false |
Hides from new-product pickers; historical products still render |
| Soft-delete a level | Delete action | Blocked while any active tb_product still references the row (application-enforced) |
¶ 3. Validation & Errors
| Symptom / Message | Cause | Action |
|---|---|---|
| "Code already exists" on category | tb_product_category.code unique among non-deleted rows |
Pick a different code, or restore the soft-deleted row |
| "Cannot delete — products still reference this" | Active tb_product rows point here |
Reassign products first, then retry |
| "Cannot re-parent sub-category" | FK on product_subcategory_id is NoAction; products reference its item groups |
Manual data migration required — not a UI action |
| Tax change not reflected on existing products | Tax profile snapshot at product save | Re-save the product to pick up the new default |
price_deviation_limit = 0 doesn't block 0% deviation |
0 means "no tolerance configured" — falls back to app default |
Set a positive % to enforce a real cap |
| Hierarchy ambition vs schema | carmen/docs describes "up to 5 levels"; schema enforces 3 | Schema is source of truth — 3 fixed levels (Inferred) |
¶ 4. Edge Cases
- 3 FIXED levels, NOT self-referential. Each level has its own table with FK pointing to the parent — there is no recursive
parent_idcolumn. Tooling that assumes a self-referential tree will not work. - Inheritance is
item_group ?? sub_category ?? category ?? app default— finest level wins, computed at product save. - Re-parenting blocked. Once products reference an item group, the sub-category cannot be moved to a different category — FK
NoAction. - Tax profile snapshot. Changing
tax_profile_idon a category affects only NEW products; existing products keep their snapshotted setup until re-saved. - Code scoping. Sub-category and item-group codes are unique within their parent (composite
(code, name, deleted_at)), not globally. 0deviation tolerance. Means "not configured" — falls back to application default rather than blocking 0% deviation.
¶ 5. Data Model (Dev)
Source: tenant schema. The taxonomy is THREE FIXED LEVELS — each level a separate table with FK to parent. NOT a single self-referential tree.
¶ 5.1 tb_product_category (level 1)
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
code |
String @db.VarChar |
No | Short code (e.g. FOOD, BEV, SUPP). |
name |
String @db.VarChar |
No | Display name. |
description |
String? @db.VarChar |
Yes | Free text. |
is_active |
Boolean? |
Yes | Default true. |
price_deviation_limit |
Decimal(20,5)? |
Yes | Max % PO unit-price divergence (default 0). |
qty_deviation_limit |
Decimal(20,5)? |
Yes | Max % GRN qty divergence from PO (default 0). |
is_used_in_recipe |
Boolean? |
Yes | Inherited default (default true). |
is_sold_directly |
Boolean? |
Yes | Inherited default (default false). |
tax_profile_id / tax_rate |
mixed | Yes | Default tax setup. |
note, info, dimension |
— | Yes | Standard metadata. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([code, deleted_at]), @@unique([code, name, deleted_at]). Reverse relations to tb_product_sub_category, tb_product_category_comment, tb_tax_profile.
¶ 5.2 tb_product_sub_category (level 2)
| Field | Prisma Type | Description |
|---|---|---|
id |
String @db.Uuid |
Primary key. |
product_category_id |
String @db.Uuid |
FK to tb_product_category — parent in hierarchy. |
code, name, description |
String |
Identification. |
price_deviation_limit / qty_deviation_limit |
Decimal(20,5)? |
Override parent. |
is_used_in_recipe / is_sold_directly / is_active |
Boolean? |
Flag overrides. |
tax_profile_id / tax_rate |
mixed | Tax override. |
| Audit columns | — | Standard. |
Constraints: @@unique([code, name, deleted_at]). Reverse relation to tb_product_item_group.
¶ 5.3 tb_product_item_group (level 3 — leaf)
| Field | Prisma Type | Description |
|---|---|---|
id |
String @db.Uuid |
Primary key. |
product_subcategory_id |
String @db.Uuid |
FK to tb_product_sub_category — parent. |
code, name, description |
String |
Identification. |
price_deviation_limit / qty_deviation_limit / is_* / tax_* |
mixed | Same shape as parents; finest-grained override. |
| Audit columns | — | Standard. |
Each level also has a *_comment table for discussion and attachments.
Hierarchy depth. Schema fixes the tree at exactly three levels.
../carmen/docs/product-management/PROD-Overview.mddescribes "up to five levels" as an ambition; the Prisma schema currently enforces three. (Inferred — schema is source of truth.)
¶ 6. Lifecycle / Business Rules
1. Product Admin creates a category (unique code + name)
2. Sub-categories added under it; item groups under each sub-category
3. Defaults (tax, deviation tolerances, is_used_in_recipe, is_sold_directly)
cascade downward at INSERT; can be overridden at any level
4. Each tb_product references one (category, sub_category, item_group) triple
5. Deactivation (is_active = false) hides from new-product pickers;
historical products still render. Soft-delete is BLOCKED while any
tb_product still references the row (application-enforced; FK = NoAction)
- Code uniqueness. Category
codeunique among non-deleted; sub-category / item-group codes unique within parent. - Hierarchy integrity. Sub-category cannot be re-parented once item groups have products — FK
NoAction. - Tax change. Affects new products only; existing products keep snapshotted setup unless re-saved.
- Deviation tolerances. Percentages 0-100;
0= "no tolerance configured" → falls back to app default.
¶ 7. Cross-References
- product — every product carries a
(category, sub_category, item_group)triple - product/03-user-flow-product-admin — Product Admin maintains the tree
- purchase-request · purchase-order (
price_deviation_limit) · good-receive-note (qty_deviation_limit) - recipe —
is_used_in_recipefilter - access-control/permission — category-scoped filters for Purchaser / Store Keeper
- master-data/tax-profile —
tax_profile_idcascade
¶ 8. References
- Prisma:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_product_category(~1566-1602),tb_product_sub_category(~1711-1748),tb_product_item_group(~1638-1675),tb_product_category_comment(~1604-1636). - Frontend:
../carmen-inventory-frontend/app/(root)/product-management/category/. - carmen/docs:
../carmen/docs/product-management/PROD-API-Endpoints-Categories.md;../carmen/docs/product-management/PROD-Overview.md. - Module landing: product § 3 (Product Category key concept).
