¶ My Approval
At a Glance
Owner: Any workflow approver · Table: none — projection over workflow state · Workflow: read-only inbox · Upstream: purchase-request, purchase-order, purchase-order/credit-note · Aggregated personal inbox of documents awaiting the signed-in user's action.
¶ 1. What & Who

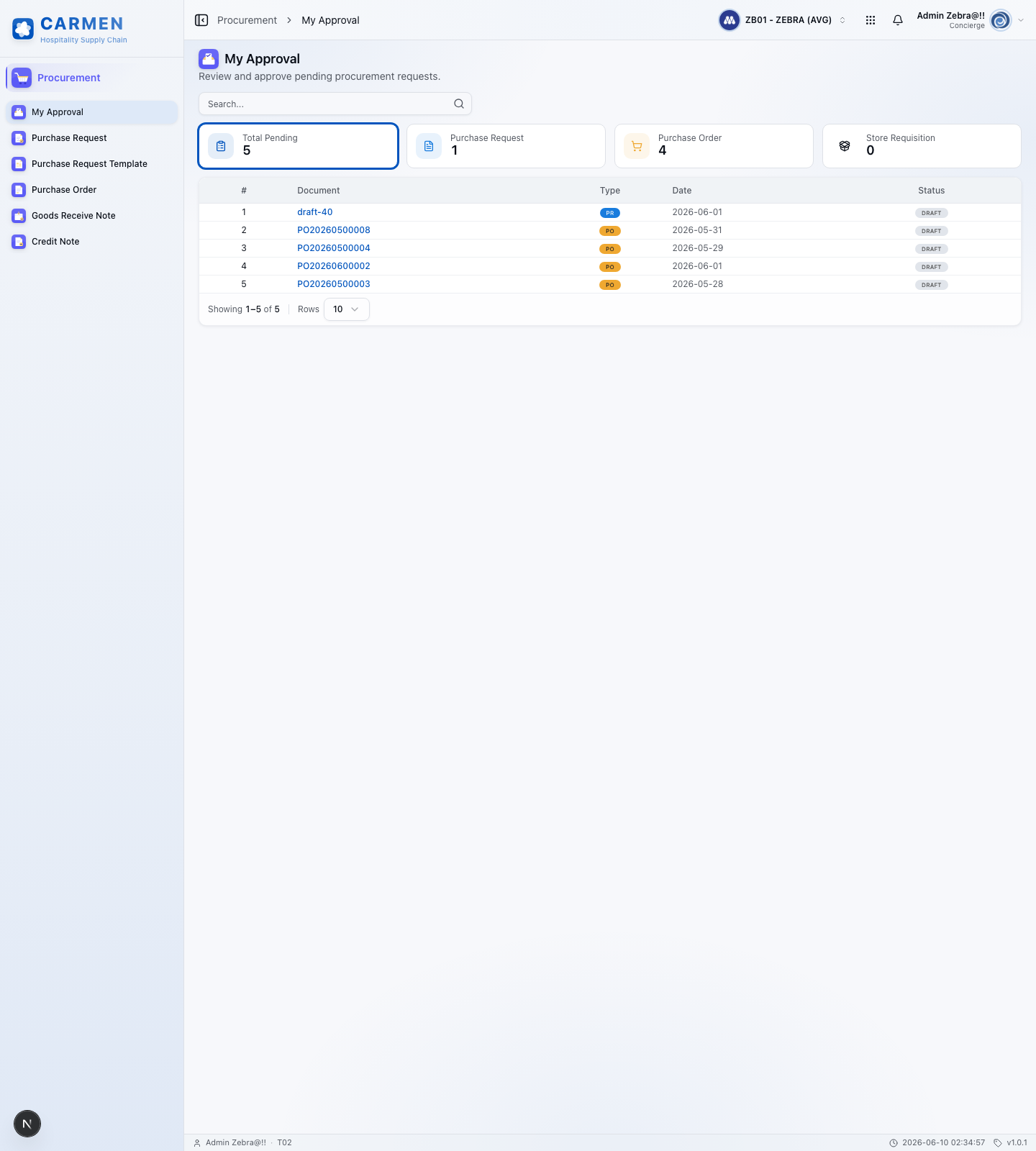

My Approval (/procurement/approval) is the per-user inbox aggregating every workflow stage assigned to the signed-in user across approvable documents — primarily Purchase Requests, but also POs, Credit Notes, and any module the workflow engine gates. Where each module shows all its documents, My Approval shows only the slice the current user must act on right now. The page is read-and-act only — it owns no persisted entity and is a projection over workflow state held on each source document.
Used by any HOD / Procurement Manager / Finance Controller who appears in a stage's approver list · No write-back to a local table — every action calls the source document's API.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|
| See pending items | Procurement → My Approval | Sorted by last_action_at_date desc by default |
| Approve a PR / PO / CN | Row → Approve | Calls source-doc API; row drops off on success |
| Send back a PO (or PR) | Row → Send Back | Routes to workflow_previous_stage; required for "fix-and-resubmit" |
| Reject | Row → Reject | Terminates the source doc workflow |
| Bulk approve | Multi-select → Approve selected | Fans out one transaction per row |
| Inspect history | Expand row | Renders workflow_history JSON entries |
¶ 3. Validation & Errors
| Symptom / Message | Cause | Action |
|---|---|---|
| Row missing from inbox | Signed-in user not in user_action.execute[] on the doc's current stage |
Check stage configuration in system-config/workflow |
| "409 Conflict" on approve | A peer in the same execute[] already acted; engine has advanced the stage |
UI auto-refreshes — re-check the inbox |
| Action buttons disabled | Source document's posting period has closed | Reopen the period or void the document (finance) |
| Row appears but cannot act | deleted_at set on the source out-of-band |
Refresh — the row should drop off |
| Cross-tenant doc shown | (Cannot happen) | All queries scoped by active tenant context |
¶ 4. Edge Cases
- No own table. Every action is a write against the source document, not the inbox. The inbox itself has no audit trail —
workflow_historylives on the source. - Concurrency. Two peers acting on the same row simultaneously: the second action gets
409 Conflictbecauseworkflow_current_stagehas advanced. UI re-queries and the row drops off. - Soft-deleted source hidden. Rows where
deleted_at IS NOT NULLon the source are excluded. - Period-closed docs. Row stays visible but action buttons disable — finance must reopen or void.
- Identity filter only. A row is visible iff the signed-in user's id is in
user_action.execute[]. No additional role check at this layer — the engine resolved roles to user-ids when it wrote the array. - Multi-tenancy. Each query scoped by active tenant context; cross-tenant approvals impossible.
¶ 5. Data Model (Dev)
There is no tb_my_approval table. The page is a query / view backed by the workflow-state columns embedded in every approvable document. It scans those documents and surfaces the subset whose active stage matches the signed-in user.
¶ 5.1 Query pattern
For every approvable document type (PR, PO, CN, store requisition, etc.), the same column shape is queried:
| Column on source table | Purpose in My Approval |
|---|---|
workflow_id |
Identifies which workflow definition gates this document. |
workflow_current_stage |
The stage matched against the user's role / membership. |
workflow_previous_stage, workflow_next_stage |
Used to render Send-Back targets and the "next approver" preview. |
workflow_history (JSON) |
[{stage, action, message, by:{id,name}, at}, …] — audit trail rendered on row expansion. |
user_action (JSON) |
{ execute: [{id}, …] } — the authoritative filter: row appears only if signed-in user's id is in this array. |
last_action, last_action_at_date, last_action_by_id, last_action_by_name |
Most recent transition — shown on the row. |
doc_status (per-module enum) |
Surface-level filter — only in_progress (or equivalent "awaiting action" status) is listed. |
Identical column shape on tb_purchase_request, tb_purchase_order, tb_credit_note, and other approvable tables. The page issues a parallel query per document type and unions the rows.
¶ 5.2 The user_action.execute[] array
Populated by the workflow engine on each stage transition based on stage configuration in system-config/workflow:
- Role-based stage — every user holding the configured role is enumerated into
execute[]. - Named-approver stage — the named user(s) added directly.
- Threshold-routed stage — threshold rule resolves to a role or named user, then enumerated.
A user sees a row iff their id is in execute[] for the doc's workflow_current_stage. Once any peer acts, the engine recomputes for the next stage and the row drops off.
¶ 6. Workflow / Business Rules
The inbox has no own status — behaviour is entirely a projection:
- Row appears when the engine populates a doc's
execute[]with the signed-in user's id. - Row disappears when the user (or peer) approves, rejects, sends-back, or split-rejects.
- Row state mirrors source. If the source is cancelled / voided out-of-band, the row drops off on next refresh.
Approve / reject / send-back invoke the same backend endpoints as each module's detail page — the inbox is purely a routing convenience. Bulk approve fans out one transaction per row. No fields on the inbox row itself are editable. The inbox owns no posting effect.
¶ 7. Cross-References
- purchase-request — primary document type; inbox typically renders PRs awaiting each stage.
- purchase-order — POs requiring manual approval (price-threshold, vendor-risk, budget-override).
- purchase-order/credit-note — CRNs awaiting approval under the same workflow-state contract.
- system-config/workflow — stage definition, role mapping, threshold rules, and the rule populating
user_action.execute[]. - access-control/application-role — role-to-permission mapping for eligibility.
- purchase-request/03-user-flow-approver — approver persona walkthrough.
¶ 8. References
- Prisma (no own table): workflow-state columns on
tb_purchase_request,tb_purchase_order,tb_credit_note, etc. —../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma(workflow_* and user_action block replicated on each approvable model; CN example at lines 358-376). - Frontend route:
../carmen-inventory-frontend/app/(root)/procurement/approval/. - Carmen docs:
../carmen/docs/business-analysis/my-approvals-ba.md; approver experience in../carmen/docs/purchase-request-management/PR-User-Experience.md.
