¶ Report Schedule
At a Glance
Owner: Sysadmin / schedule-admin · Table:tb_report_schedule· Retention: indefinite (soft-delete only); artefacts age out via reporting-audit/history · Used by:micro-cronjobspoller · Pairs a report template with a cron expression, frozen filters, and a delivery list.
¶ 1. What & Who
Report Schedule defines when a report runs and where the output goes. Each row binds a report template to a cron expression, a frozen filter set, and a recipient list. The cron service polls active schedules, locks the fire slot in Redis, and enqueues a reporting-audit/history job that micro-report executes. The history row is the artefact of record; the schedule row is the definition.
Audience: Sysadmin (create / edit / disable), Operations (recipient changes, cron tuning), Auditor (verify daily exports still fire).

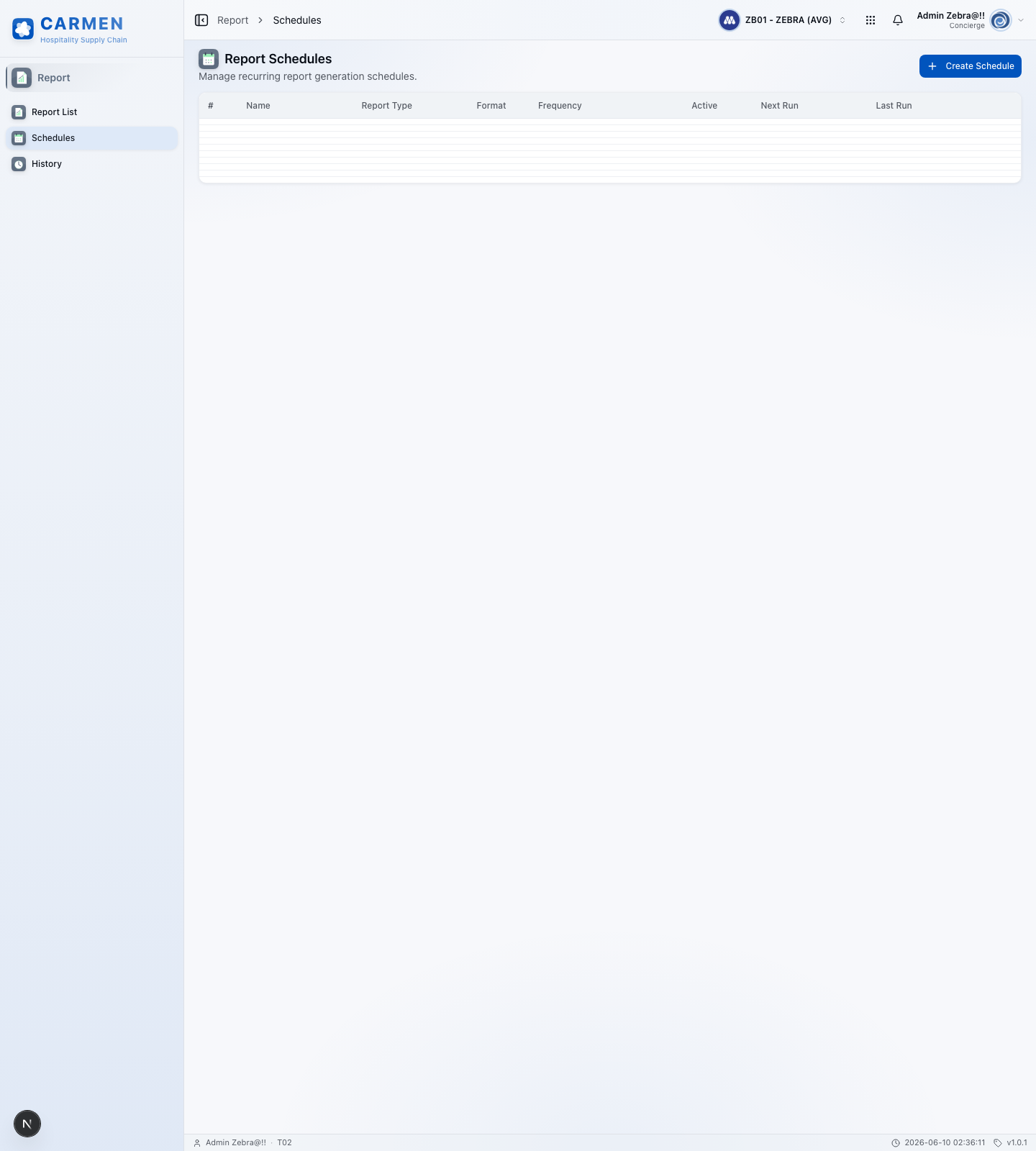

¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|
| Pause a schedule | Reports → Schedules → row → Active toggle off | Sets is_active = false; row preserved, polling suspended |
| Change cron expression | Detail screen → Cron builder | Recomputes next_run_at from now |
| Update recipients | Detail screen → Recipients picker | Typed entries: email / user / sftp |
| Test a schedule without waiting | Detail screen → Test Run | Enqueues a one-off job with same parameters |
| See last fire result | List → Last status column | Mirrors latest reporting-audit/history row |
| See next fire time | List → Next-run countdown | Live from next_run_at |
| Delete a schedule | Detail screen → Delete | Soft-delete via deleted_at; scheduler ignores |
| Have two cadences off one template | Create a second schedule with same report_type |
No uniqueness on (report_type, cron_expression) — intentional |
¶ 3. Common Questions
| Symptom / Question | Cause / Answer | Action |
|---|---|---|
| Schedule isn't firing | is_active = false, deleted_at set, or cron expression wrong |
Toggle active + verify cron in the builder |
| Two scheduler replicas — will it fire twice? | No — Redis lock on (schedule_id, fire_timestamp) guarantees exactly-one enqueue |
— |
| What happens if we were down for a missed slot? | schedule_config.misfire_policy: fire_once (default), skip, or fire_all |
Long-stopped tenants should use skip |
| Which timezone does cron run in? | schedule_config.timezone (typically Asia/Bangkok); falls back to UTC if absent |
Set on creation |
| Where does the output land? | History row's file_url + delivered to each entry in recipients |
See reporting-audit/history |
| Why was a recipient skipped? | Unknown type in the recipient object |
Warning written to job row's error_message |
| Who can create schedules? | Schedule-admin permission (Sysadmin holds implicitly) | Grant via access-control/permission |
¶ 4. Edge Cases
- Idempotency. Redis lock per
(schedule_id, fire_timestamp); second racing scheduler is a no-op. Enqueued job carriesoptions.schedule_idandoptions.scheduled_fire_atfor traceability. - Soft-delete semantics. Scheduler poll filters
is_active = true AND deleted_at IS NULL AND next_run_at <= now(). Soft-deleted rows ignored forever. - Reactivation recomputes
next_run_atfrom cron against the current time — does not back-fill missed slots. - Time-zone. Cron evaluated against
schedule_config.timezone.last_run_at/next_run_atstored UTC. - RBAC on reading. Read access requires the report category's read permission; edit / toggle requires schedule-admin.
¶ 5. Data Model (Dev)
Source: tenant schema (packages/prisma-shared-schema-tenant/prisma/schema.prisma).
¶ 5.1 tb_report_schedule
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
name |
String @db.VarChar(255) |
No | Display name. |
report_type |
String @db.VarChar(100) |
No | Logical report identifier (resolves a tb_report_template). |
report_template_id |
String? @db.Uuid |
Yes | Optional explicit binding; otherwise resolved by report_type. |
format |
enum_report_format |
No | pdf / excel / csv / json. |
cron_expression |
String @db.VarChar(100) |
No | Standard 5- or 6-field cron. |
schedule_config |
Json? @db.JsonB |
Yes | { timezone, jitter_seconds, misfire_policy }. |
filters |
Json? @db.JsonB |
Yes | Default {}. Filter set applied each run. |
options |
Json? @db.JsonB |
Yes | Default {}. Render options. |
recipients |
Json? @db.JsonB |
Yes | Default []. Typed delivery targets. |
is_active |
Boolean |
No | Default true. Disable without deleting. |
last_run_at, next_run_at |
DateTime? @db.Timestamptz(6) |
Yes | Health-check columns. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: index on is_active (idx_report_schedule_active). No uniqueness on (report_type, cron_expression) — multiple schedules per template are intentional.
¶ 6. Business Rules
- Cron format. Standard
minute hour day-of-month month day-of-week. Examples:0 6 * * *(daily 06:00),0 7 * * 1(Mon 07:00),0 0 1 * *(1st of month). - Idempotency. Redis lock on
(schedule_id, fire_timestamp)guarantees exactly-one enqueue across replicas. - Missed-fire policy.
fire_once(default — fire on next poll),skip(drop and advance), orfire_all(catch up every missed slot). - Active flag.
is_active = falsesuspends polling without deletion; toggling on recomputesnext_run_atfrom now. - Recipient resolution. Typed objects —
{type:"email",value:...},{type:"user",value:<uuid>},{type:"sftp",value:<config_id>}. Unknown types skipped with warning. - RBAC on creation. Only schedule-admin grant (Sysadmin implicit) can create / edit.
- Retention. Schedule rows retained indefinitely (soft-delete only); artefacts age out per reporting-audit/history retention.
¶ 7. Cross-References
- reporting-audit/report — parent module.
report_type/report_template_idresolvetb_report_template. - reporting-audit/history — every fire writes one
tb_report_jobrow;last_run_atmirrors it. - reporting-audit/notification —
user-type recipients receive in-app notification;emailreceives the artefact via platform mailer. - reporting-audit/activity — create / update / delete / enable / disable logged with
entity_type = 'report_schedule'. - access-control/user, access-control/permission — owner + schedule-admin grants.
¶ 8. References
- Prisma tenant:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_report_schedule(lines 5685-5709),enum_report_format(~5628-5633). - Frontend route:
../carmen-inventory-frontend/app/(root)/report/schedules/. - Cron microservice:
../micro-cronjobs/internal/scheduler/scheduler.go(poll + dispatch),../micro-cronjobs/internal/scheduler/redis_locker.go(idempotency),../micro-cronjobs/internal/repository/cronjob_repo.go(reads). - Reports microservice:
../micro-report/— consumes the enqueued job.
