¶ Document Management
At a Glance
Owner: Sysadmin (delete); list / download via App ID grants · Storage:FILE_SERVICEmicroservice (S3-compatible) +tb_attachmentmetadata mirror · Used by: PR / PO / GRN / SR / IA / count / pricelist / vendor / product attachments · 10 MB cap, BU-scoped.
¶ 1. What & Who

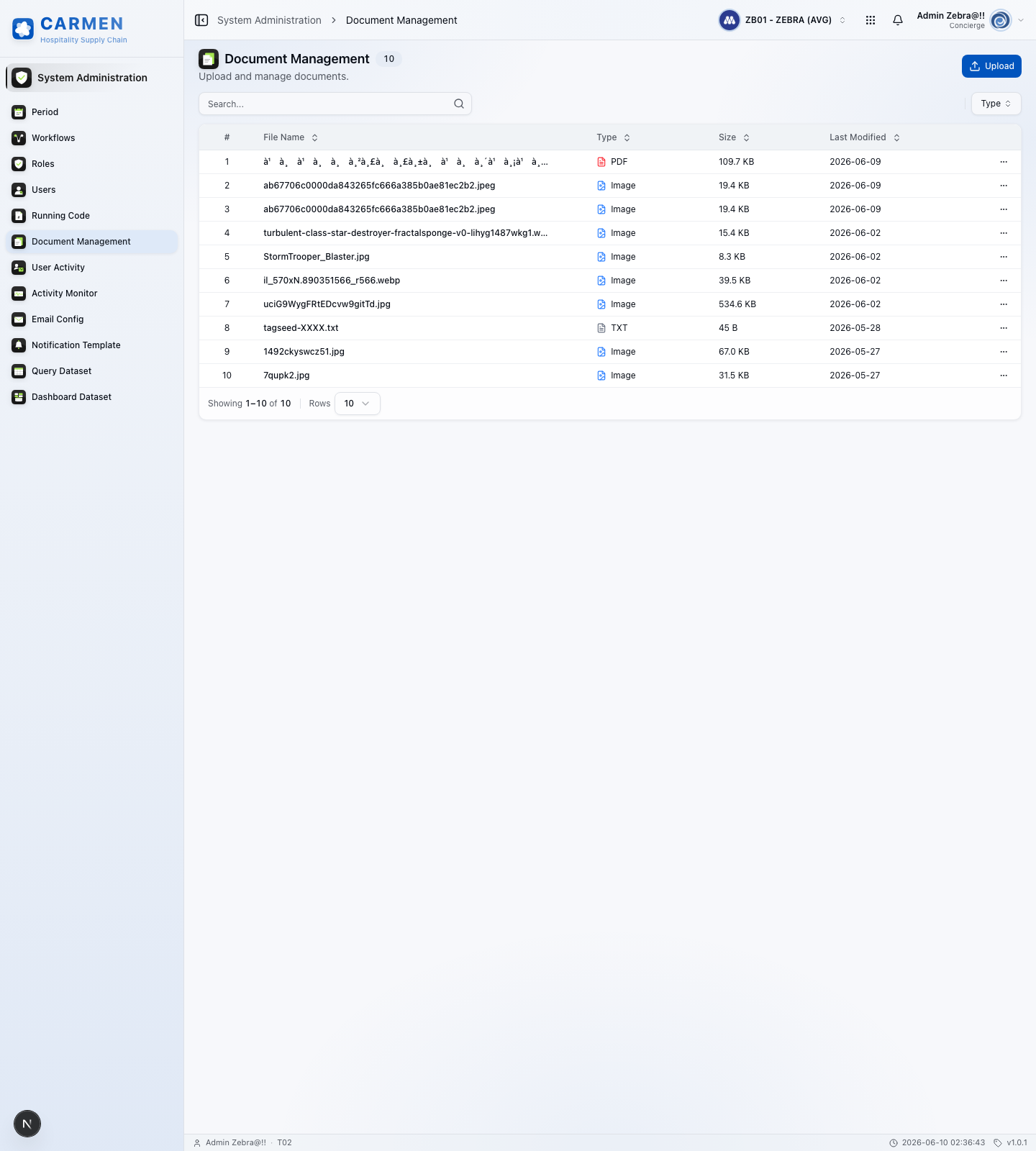

Document Management is the file-storage registry surface at /system-admin/document — the BU-scoped index of every file uploaded into Carmen. Each row is one binary blob in object storage (S3-compatible) plus its display metadata. The same files surface elsewhere as attachments on PR / PO / GRN / SR / IA / pricelist / count documents, where each transactional table carries an attachments JSONB referencing file tokens from this registry.
Audience: Sysadmin manages uploads / deletes here; non-admin roles typically have list / get / download but not delete. The file microservice (FILE_SERVICE, commands files.upload / files.get / files.list / files.delete) owns storage; the gateway exposes the REST surface.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|
| Upload a new file | System Admin → Document → Upload | Single-file picker; accepts .pdf, .docx, .xls/.xlsx, .csv, .txt; 10 MB cap |
| Check the 10 MB upload limit | Frontend rejects pre-POST |
MAX_FILE_SIZE = 10 * 1024 * 1024; backend re-validates; toast fileSizeLimit on rejection |
| Filter by file type | Type multi-select (PDF, Excel/CSV, Word, Image, Text, Archive, Code) | URL-synced; active-filter badge bar appears |
| Download a file | Per-row download action | Presigned URL via GET /api/:bu_code/documents/:filetoken/download |
| Share a time-limited link | GET /api/:bu_code/documents/:filetoken/presigned-url?expirySeconds=N |
Never embed permanent storage creds in the browser |
| Delete a stale file | Per-row delete (Sysadmin only) | Confirmation dialog; hard delete — dangling fileTokens render as "missing" on bound documents |
| Attach a file to a PR / PO / GRN | NOT here — use the transactional screen | This page is the registry, not per-document attachment management |
¶ 3. Validation & Errors
| Symptom / Message | Cause | Action |
|---|---|---|
fileSizeLimit toast on upload |
File > 10 MB | Compress / split before upload |
| File rejected by picker | MIME not in allow-list (.pdf, .docx, .xls/.xlsx, .csv, .txt) |
Convert to an accepted format; FILE_SERVICE also sniffs server-side |
| "Missing" attachment on a PR/PO/GRN | File was hard-deleted from this registry while still referenced | Re-upload and re-attach; clean up dangling fileTokens manually |
| 403 on delete | User lacks documents.delete App ID |
Grant via access-control/application-role |
File from BU T01 invisible in BU T02 |
Expected — BU-scoped storage prefix | Each BU has its own partition; cross-BU access impossible |
| Presigned URL expired | expirySeconds elapsed |
Request a new one |
¶ 4. Edge Cases
- 10 MB hard cap. Enforced client-side and server-side. Larger files have no workaround in the current pipeline.
- MIME allow-list at upload, broader categories at list. Frontend filter recognises Image / Archive / Code so legacy uploads remain discoverable, but new uploads must land in the picker's allow-list.
FILE_SERVICEperforms defence-in-depth MIME sniffing server-side. - Hard delete, no cascade.
DELETEremoves storage and setstb_attachment.deleted_at; per-documentattachmentsJSONB arrays are not cleaned up — dangling tokens render as "missing". Do not delete files still attached to in-flight documents. - No in-place versioning.
tb_attachment.doc_versiondefaults to0and is reserved; current pipeline overwrites by delete-and-re-upload. - Presigned URLs preferred over direct streaming for browser sharing — never embed permanent storage credentials in the page.
¶ 5. Data Model (Dev)
The tenant schema does not have a tb_document table. Files are tracked in two places: a metadata mirror table and per-document JSONB arrays.
¶ 5.1 tb_attachment (file metadata mirror)
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
s3_token |
String? @db.VarChar(255) |
Yes | Storage token returned by FILE_SERVICE — canonical handle downstream. |
s3_folder |
String? @db.VarChar(255) |
Yes | Storage prefix (typically <bu_code>/<yyyy-mm>/). |
file_name / file_ext / file_type |
String? |
Yes | Display name, extension, MIME. |
file_size |
BigInt? @db.BigInt |
Yes | Bytes. |
file_url |
String? @db.VarChar(255) |
Yes | Persistent URL (presigned URLs issued on demand, not stored). |
doc_version |
Int |
No | Default 0; reserved for future versioning. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([s3_token, deleted_at], map: "attachment_s3_token_u") + index on [s3_token]. No FKs out — referential integrity to transactional documents lives in their attachments JSONB.
¶ 5.2 Per-document attachments JSONB
Every transactional table that supports attachments (tb_purchase_request, tb_purchase_order, tb_goods_received_note, tb_store_requisition, tb_inventory_adjustment, tb_physical_count, tb_spot_check, tb_credit_note, tb_recipe, tb_product, tb_vendor, tb_tax_profile, …) carries:
"attachments": [
{ "fileToken": "S3_UUID", "fileName": "vendor-invoice.pdf",
"fileSize": 102400, "contentType": "application/pdf",
"uploadedAt": "2026-05-15T08:00:00.000Z" }
]
fileToken matches tb_attachment.s3_token. The list endpoint queries FILE_SERVICE (source of truth), not tb_attachment directly.
¶ 5.3 DocumentFile API projection
fileToken (may carry <buCode>/ prefix — stripped before delete) · objectName · originalName · size · contentType (drives type filter) · lastModified.
¶ 6. Business Rules
- 10 MB upload cap. Client and server enforced.
- MIME allow-list on picker + server-side sniffing.
- BU-scoped. All endpoints under
/api/:bu_code/documents/*; storage partitioned bybu_code. - Presigned URLs for download / sharing — never embed permanent credentials.
- AppId guards.
documents.upload,documents.list,documents.get,documents.download,documents.info,documents.presignedUrl,documents.delete. Non-admin = list / get / download only. - Hard delete. Storage removed,
tb_attachment.deleted_atset, per-document arrays not cascaded. - Audit logging via
EnrichAuditUsers(uploads, deletes; presigned-URL specifically inferred — to be verified). - No in-place versioning — overwrite via delete + re-upload.
¶ 7. Cross-References
- purchase-request / purchase-order / good-receive-note / store-requisition / inventory-adjustment / physical-count / spot-check — carry
attachmentsJSONB. - master-data/vendor / product — vendor and product master records carry their own
attachmentsarrays. - reporting-audit/attachment — cross-module attachment policy and visibility rules.
- reporting-audit/report — generated report artefacts land here via the same
fileTokenmechanism. - system-config/workflow — workflow comments embed
attachmentsarrays for evidence files. - reporting-audit/activity — upload / delete / presigned-URL audit entries.
¶ 8. References
- Prisma:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_attachment(lines ~4427-4449); per-documentattachmentsJSONB columns throughout. - Backend controller:
../carmen-turborepo-backend-v2/apps/backend-gateway/src/application/document-management/document-management.controller.ts. - Backend service:
../carmen-turborepo-backend-v2/apps/backend-gateway/src/application/document-management/document-management.service.ts— forwards toFILE_SERVICEoverfiles.*microservice commands. - Frontend route:
../carmen-inventory-frontend/app/(root)/system-admin/document/page.tsxand_components/document-component.tsx. - Frontend hook:
../carmen-inventory-frontend/hooks/use-document.ts—useDocument,useUploadDocument,useDeleteDocument. - Frontend type:
../carmen-inventory-frontend/types/document.ts—DocumentFile.
