¶ Running Code
At a Glance
Owner: Sysadmin · Table:tb_config_running_code· Used by: numbering service on every document create · Document-numbering rules —PR202605-00001etc.
¶ 1. What & Who
Running codes are the document-numbering rules for every transactional document type. A row defines the prefix, optional date token, and zero-padded running counter — assembled into a format string — which the numbering service consumes at document-create time to mint a human-readable reference like PR202605-00001.
The system is keyed by type (one row per document type — PR, PO, GRN, SR, IA, etc.) with the entire pattern captured inside the config JSONB column. Keeping the pattern as data lets a property change PR-YYYYMM-NNNN to REQ-2026-NNNNN without a code deploy.
Maintained by Sysadmin. Read by the numbering service on every new document.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|

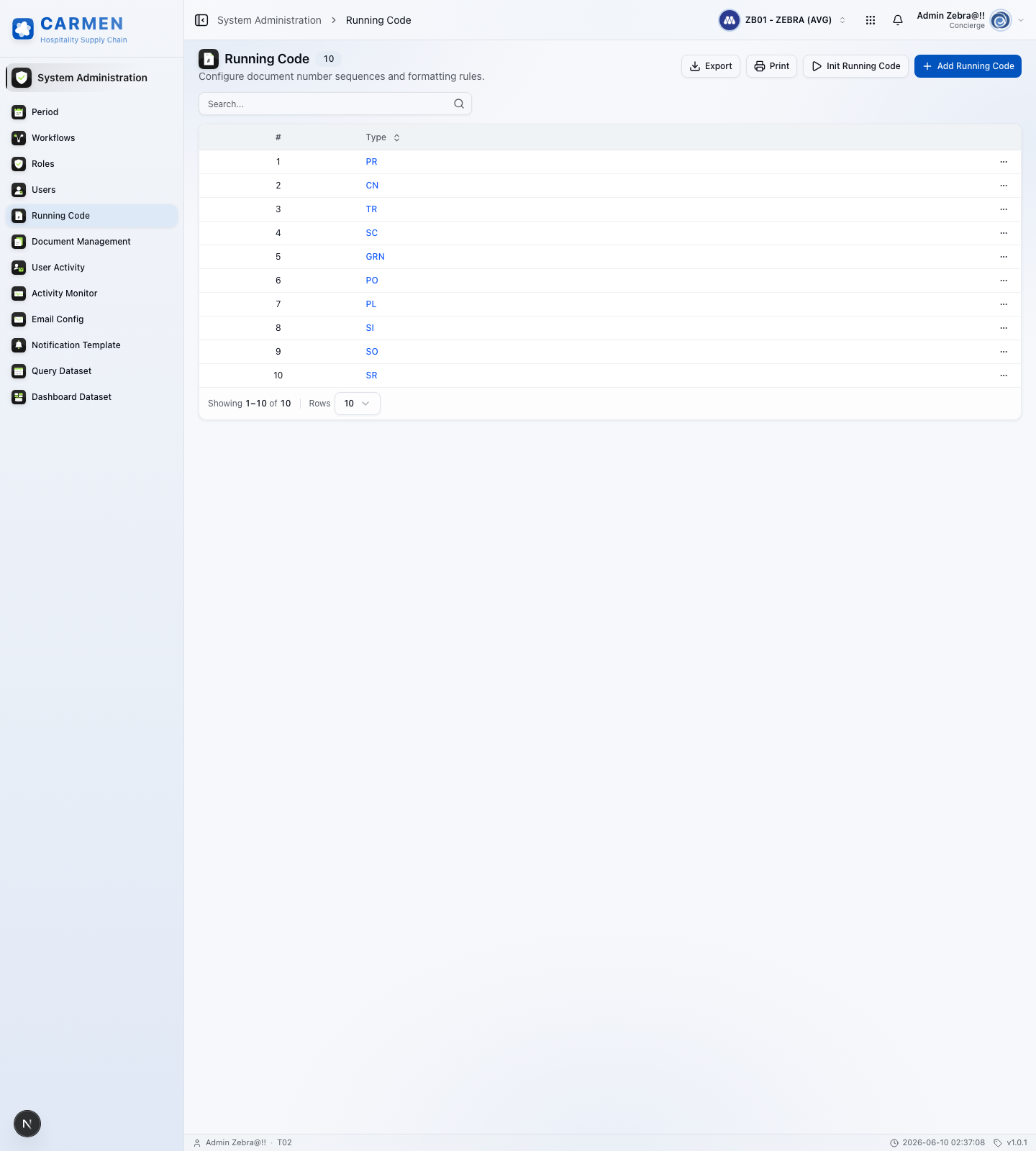

| Change pattern for a document type | System Config → Running Code → edit row | Inline segment editor + preview |
| Add running code for a new doc type | System Config → Running Code → New | Pick type (e.g. IA), define segments |
| Widen counter (e.g. 4→5 digits) | Edit C segment width |
Takes effect at next mint; historical refs unchanged |
| Preview next three numbers | Preview field on row | Verifies pattern before save |
| Retire a document type | Soft-delete the row | Only on retired types not in active use |
¶ 3. Validation & Errors
| Symptom | Cause | Action |
|---|---|---|
| "Duplicate type" | Existing non-deleted row | Edit existing row instead |
| Counter unexpectedly restarted | Dated segment changed | Counter scoped by type + dated-segment — adding yyyyMM restarts monthly |
| Format placeholder missing | format references undefined segment |
Add segment or remove placeholder |
| Document number collision | Counter persistence bug or manual edit | Reset numbering service counter; investigate |
| Cannot delete | Active document type | Soft-delete only after retirement |
¶ 4. Edge Cases
- Counter scope. Implicit — scoped by
type + dated-segment. Without a dated segment, counter is global per type. - Counter persistence is service state (advisory lock / sequence), not this table — this entity defines the pattern only.
- Pattern changes mid-period take effect at next mint; existing references render as stored.
- Format must reference at least one segment — unreferenced segments allowed but warned in UI.
¶ 5. Data Model (Dev)
Source: tenant schema.
¶ 5.1 tb_config_running_code
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key. |
type |
String? @db.VarChar(255) |
Yes | Document type discriminator (PR, PO, GRN, SR, IA, …). Effectively required by uniqueness. |
config |
Json? @db.JsonB |
Yes | Pattern definition. Default {}. |
note |
String? @db.VarChar |
Yes | Free-text note. |
info |
Json? @db.JsonB |
Yes | Free-form metadata. |
doc_version |
Int |
No | Optimistic-concurrency token. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([type, deleted_at]). Index on [type]. Reverse relation to tb_config_running_code_comment.
¶ 5.2 config JSONB shape
Observed in seed data:
{
"A": "PR", // segment A: static prefix
"B": "date('yyyyMM')", // segment B: dated token, evaluated at mint
"C": "running(5, '0')", // segment C: running counter, 5 digits, zero-padded
"format": "{A}{B}{C}" // assembly template
}
Tokens: Static (literal string), date('<pattern>') (date-fns-style), running(<width>, '<pad>') (zero-padded sequence; scope = per type + dated segment), format (template with {A}, {B}, {C} placeholders + separators).
¶ 6. Business Rules
- Uniqueness.
typeunique among non-deleted — one pattern per doc type. - Counter scope. Implicit per
type + dated-segment; global per type without a dated segment. - Counter persistence. Service state, not this table.
- Format validation. Must reference at least one segment; unreferenced segments allowed but warned.
- Pattern changes take effect at next mint; historical references unchanged.
- Deletion guards. Active types cannot be deleted; soft-delete only on retired types.
¶ 7. Cross-References
- purchase-request —
pr_no. - purchase-order —
po_no. - good-receive-note — GRN reference.
- store-requisition — SR reference.
- inventory-adjustment — IA / SI / SO references.
- physical-count, spot-check — count document numbering.
- vendor-pricelist — pricelist reference.
¶ 8. References
- Prisma:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_config_running_code(lines ~4493-4512). - Seed:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/seed-data-a01/tb_config_running_code.json. - Frontend:
../carmen-turborepo-frontend/apps/web/app/(app)/configuration/running-code/.
