¶ Workflow
At a Glance
Owner: Sysadmin / Workflow Administrator · Table:tb_workflow· Used by: PR / SR / PO (approval-bearing modules) · Stage-chain definitions — actions, recipients, SLA, hidden fields, assignees.
¶ 1. What & Who
A workflow record is the document-routing definition used by every approval-bearing module. Header columns are minimal — name, type, active flag — but the heavy lifting is in data JSONB: an ordered list of stages, the available actions per stage (submit, approve, reject, sendback), the recipients notified on each action, the fields hidden at that stage, and the users assigned to act.
Workflows are typed: an SR workflow cannot attach to a PR. Typing is via enum_workflow_type and enforced when a document selects a workflow. Multiple workflows of the same type can coexist — properties typically operate a "Standard PR" and a "High-Value PR" with different chains.
Maintained by Sysadmin (or delegated Workflow Admin). Read by the workflow runtime engine on every stage transition.
¶ 2. Common Tasks
| Task | Where | Notes |
|---|---|---|

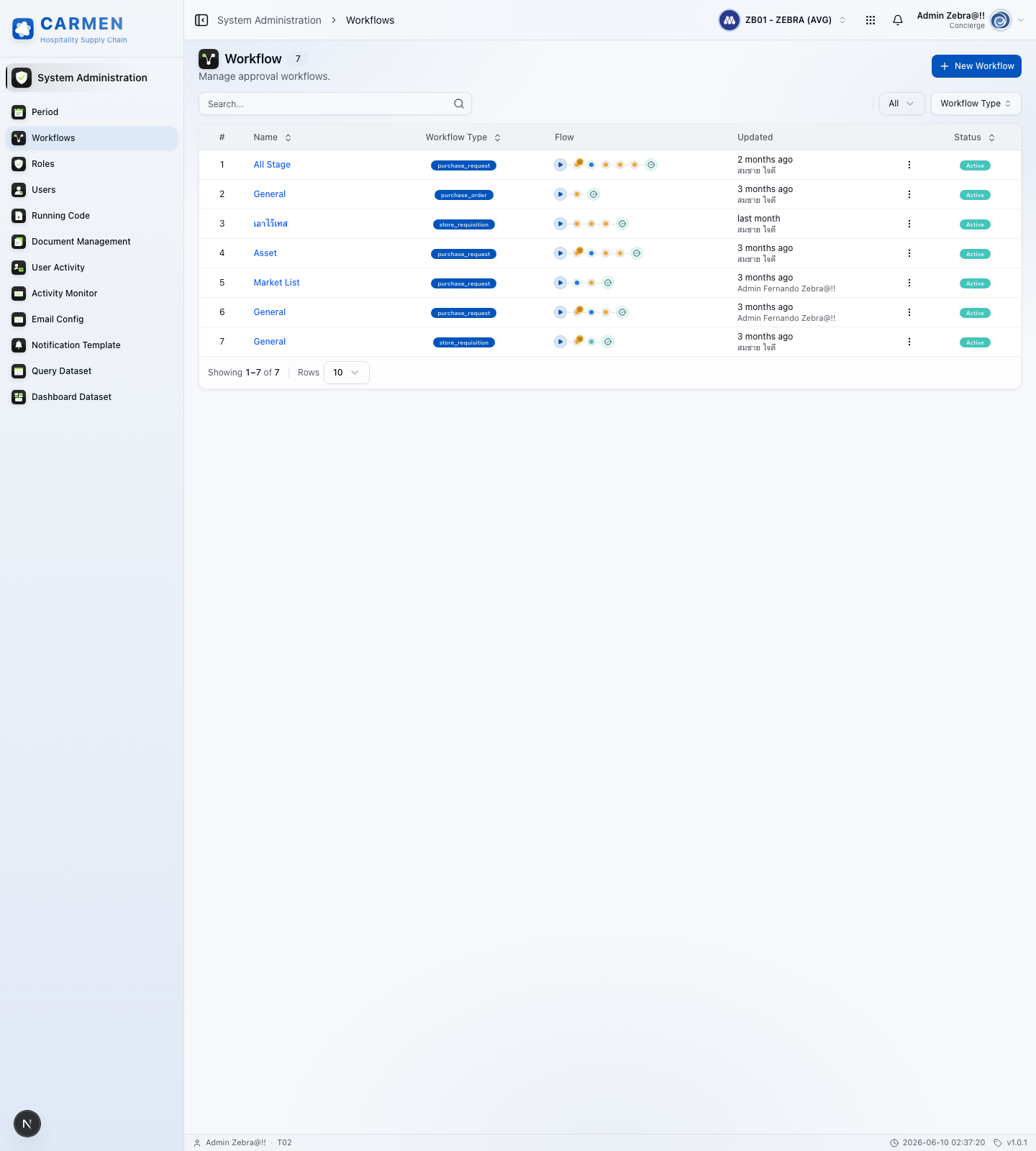

| Create a new workflow | System Config → Workflow → New | Pick workflow_type; build stages |

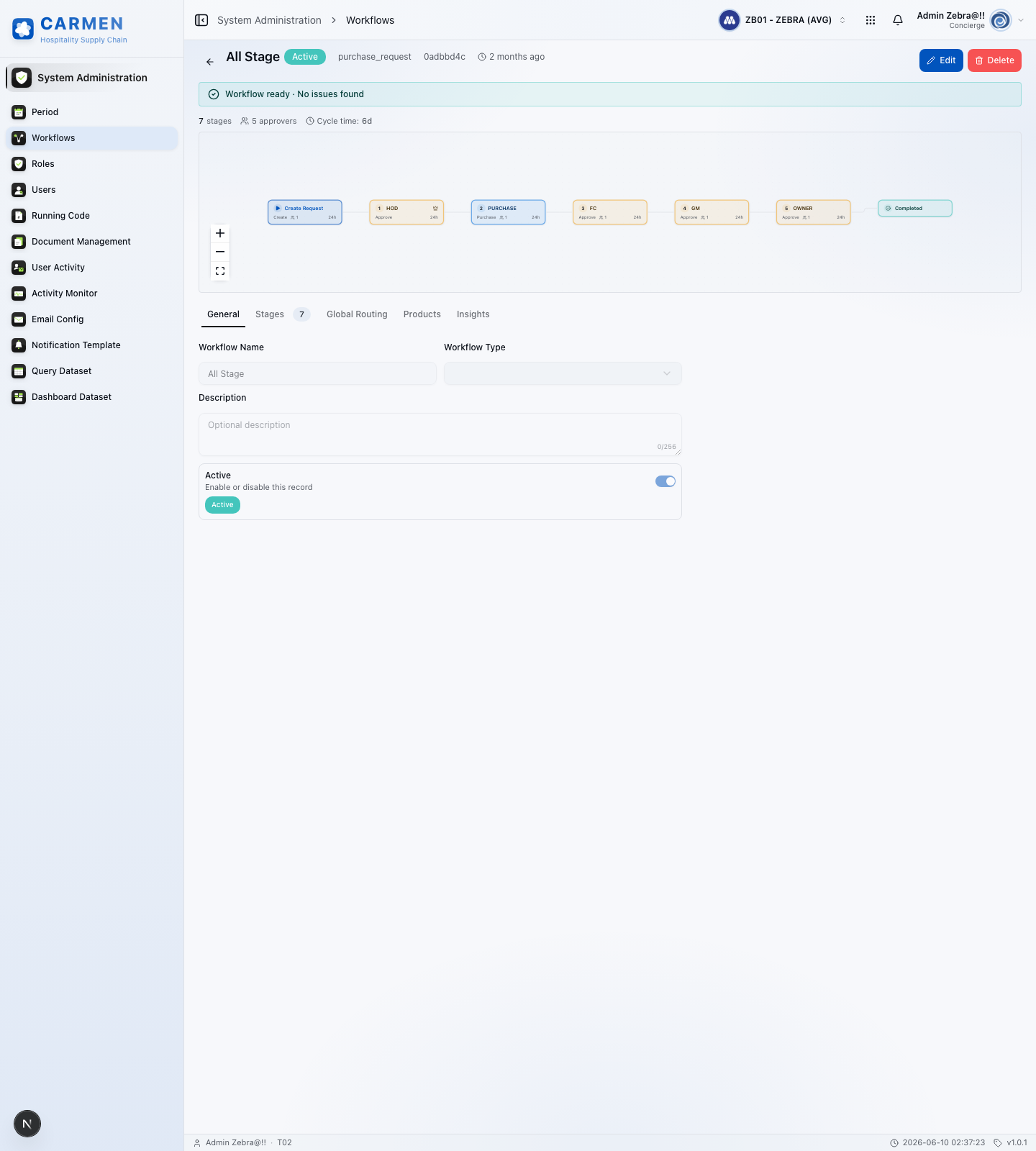

| Edit a stage | Workflow detail → stage editor | Drag-reorder; per stage set SLA, actions, recipients, hidden fields |
| Assign users to a stage | Stage → assigned_users grid | User IDs or role descriptors |
| Mark a stage as HoD gate | Toggle is_hod = true |
Routes to document's department HoD; ignores assigned_users |
| Clone for a new variant | Use UI clone action | Standard migration path for breaking changes |
| Retire an old version | Set is_active = false |
New documents pick from is_active = true only |
¶ 3. Validation & Errors
| Symptom | Cause | Action |
|---|---|---|
| "Workflow name exists" | (name, workflow_type) duplicate |
Pick different name |
| Mismatched type assignment | Document type ≠ workflow_type |
Pick a workflow of the correct type |
| Validation: missing submit stage | First stage lacks submit: is_active=true |
Add submit action to first stage |
| Cannot delete workflow | Referenced by non-completed documents | Clone + inactivate the old version |
| Approver sees masked prices | hide_fields.price_per_unit = true at active stage |
Expected — adjust stage if unintended |
| HoD route fails | No HoD configured for document's department | Configure HoD on master-data/department |
¶ 4. Edge Cases
- Versioning. Editing a live workflow does NOT retroactively change in-flight documents — runtime reads stage list as it was at attach-time. Breaking changes: clone under a new name.
- Assigned users vs roles.
assigned_usersaccepts either user IDs or role descriptors (resolved via access-control/application-role). Empty list at non-HOD approve stage = anyone with the workflow-stage role. - HoD resolution. When
is_hod: true, runtime looks up department HoD and routes there —assigned_usersignored. - Hidden fields mask UI cells but values still flow through API.
¶ 5. Data Model (Dev)
Source: tenant schema.
¶ 5.1 tb_workflow
| Field | Prisma Type | Nullable | Description |
|---|---|---|---|
id |
String @db.Uuid |
No | Primary key (gen_random_uuid()). |
name |
String @db.VarChar |
No | Display name. |
workflow_type |
enum_workflow_type |
No | purchase_request, store_requisition, purchase_order. |
data |
Json? @db.JsonB |
Yes | Full stage definition. Default {}. |
is_active |
Boolean? |
Yes | Default true. |
description / note |
String? @db.VarChar |
Yes | Free text. |
info / dimension |
Json? @db.JsonB |
Yes | Metadata. |
| Audit columns | — | Yes | created_*, updated_*, deleted_*. |
Constraints: @@unique([name, workflow_type, deleted_at]). Indexes on [name, workflow_type] and [name]. Reverse relations to tb_purchase_request, tb_purchase_request_template, tb_store_requisition, tb_workflow_comment.
¶ 5.2 data JSONB shape
{
"document_reference_pattern": "",
"stages": [
{
"name": "Request Creation",
"sla": "24",
"sla_unit": "hours",
"available_actions": {
"submit": { "is_active": true, "recipients": { ... } },
"approve": { "is_active": false, "recipients": { ... } },
"reject": { "is_active": false, "recipients": { ... } },
"sendback": { "is_active": false, "recipients": { ... } }
},
"hide_fields": { "price_per_unit": false, "total_price": false },
"is_hod": false,
"assigned_users": []
}
]
}
Per-stage keys: name, description; sla + sla_unit (hours/days); available_actions (is_active + recipients per verb); hide_fields (mask financials); is_hod (HoD gate); assigned_users (user IDs or role descriptors).
¶ 6. Business Rules
- Uniqueness.
(name, workflow_type)unique among non-deleted. - Type binding. Document type X attaches workflows where
workflow_type = Xonly; runtime rejects mismatch. - At-least-one submit stage. First stage must enable
submit; subsequent must enable at least one ofapprove/reject/sendback. - Deletion guards. Workflow referenced by non-completed documents cannot be deleted; clone + inactivate is the migration path.
- Versioning. Live edits do NOT retroactively change in-flight documents.
- HoD resolution. Looks up document department's HoD; ignores
assigned_users. - Hidden fields. Mask UI cells; API values still flow.
¶ 7. Cross-References
- purchase-request — primary consumer (
purchase_request). - store-requisition — canonical multi-stage user (
store_requisition). - purchase-order — high-value approval (
purchase_order). - good-receive-note, inventory-adjustment, vendor-pricelist, physical-count, spot-check — optional workflow gating.
- access-control/application-role — role descriptors in
assigned_users. - master-data/department — HoD resolution.
¶ 8. References
- Prisma:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/schema.prisma—tb_workflow(lines ~3398-3425),enum_workflow_type(lines ~265-269). - Seed:
../carmen-turborepo-backend-v2/packages/prisma-shared-schema-tenant/prisma/seed-data-a01/tb_workflow.json. - carmen/docs:
../carmen/docs/workflow-permissions-system.md— role-type semantics. - Frontend:
../carmen-turborepo-frontend/apps/web/app/(app)/configuration/workflow/.
